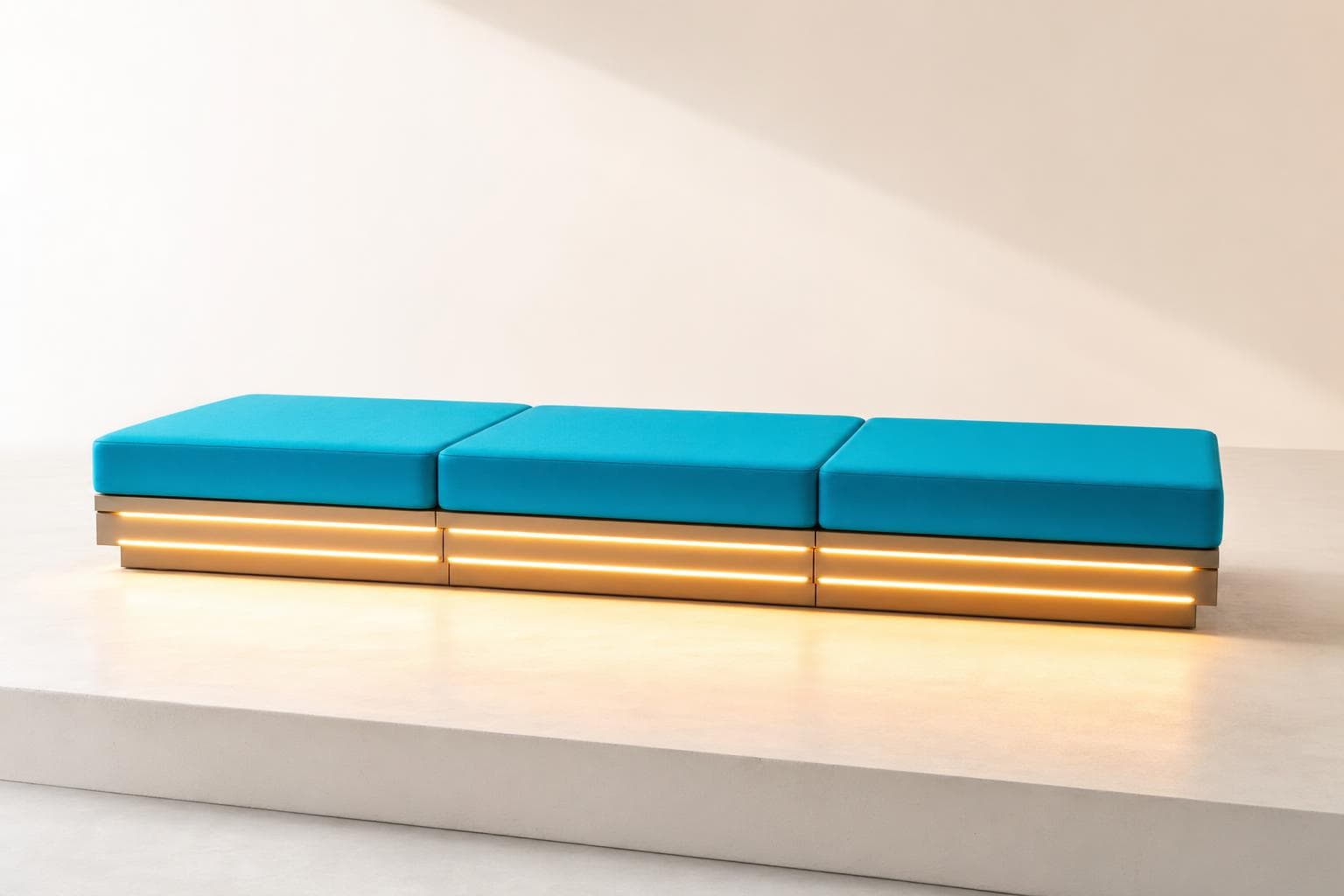

3-Section Modular LED Daybed

Achieving and maintaining IP65 rating across 100 units is challenging: each daybed has 3 LED channels, 12+ sealed connectors (for modular sections), 1 USB-C port, and 1 battery compartment—all potential water ingress points. A single poorly sealed connector or cracked diffuser panel allows moisture into the electronics, causing LED failure or battery short-circuit (fire risk). Field failures in high-profile hospitality venues (beach clubs, hotels) create liability, brand damage, and costly warranty claims. Testing every unit to EN 60529 (IP65 water jet test) is time-consuming but essential.

Mitigation — Mandate IP65 testing for 100% of units during final assembly: use a calibrated water jet rig (12.5 L/min, 3 min per unit) and visual + electrical inspection post-test. Design the LED channel and battery compartment with double-seal architecture (gasket + silicone bead). Use marine-grade cable glands for all wiring pass-throughs and conformal coating on the dimmer control PCB. Train assembly technicians on proper gasket installation and torque specs for enclosure screws. Include a 2-year warranty with field service protocol for any IP-related failures, and track failure modes to drive continuous improvement.

The rechargeable battery pack is the single longest-lead and most regulated component. EU-certified IP65 battery packs (with protection circuitry, USB-C PD, and UN38.3 transport certification) have 8–12 week lead times from German suppliers like BMZ or Varta. Any disruption—cell shortages, transportation delays (ADR road/air), or supplier capacity constraints—delays the entire daybed production. Lithium-ion cells are also subject to geopolitical supply risk (China controls 70% of global cell production) and strict transport regulations (IATA, ADR) that can cause customs holds.

Mitigation — Dual-source battery packs from two EU suppliers (e.g. BMZ in Germany + Leclanché in Switzerland). Maintain 4-week safety stock of certified battery modules for the first 200 units. Pre-negotiate volume allocation agreements with suppliers for Q2/Q3 hospitality peak season. Consider designing the battery compartment to accept multiple form factors (e.g. 18650 vs. 21700 cells) to reduce vendor lock-in. Work with a freight forwarder experienced in Class 9 dangerous goods (lithium batteries) to streamline customs and transport.

The daybed integrates a rechargeable battery, LED lighting, and USB-C charging—subject to EU Low Voltage Directive (LVD 2014/35/EU), EMC Directive (2014/30/EU), and RoHS (2011/65/EU). Achieving CE marking requires third-party testing (EN 60598 for LED luminaires, EN 55015 for EMC, EN 62133 for battery safety) which takes 4–6 weeks and costs €3,000–€6,000. Any design flaw discovered during testing (e.g. EMC emissions, inadequate battery protection) triggers redesign and retest, adding 6–8 weeks. IP65 ingress protection must also be validated per EN 60529.

Mitigation — Engage a notified body (e.g. TÜV Rheinland, Intertek) during the design phase (week 2–3) for pre-compliance consultation. Use pre-certified modules wherever possible: buy battery packs with existing UN38.3 and IEC 62133 certs; specify LED drivers with CE/LVD approval. Conduct internal pre-testing (EMC emissions, IP65 water spray) before formal submission. Budget €8,000 and 6 weeks in the project timeline specifically for compliance testing. Maintain a technical file (risk assessment, test reports, declarations of conformity) for EU market surveillance inspections.

The modular 3-section connector system is a key differentiator, allowing flexible reconfiguration for beach clubs and rooftop bars. If design files (CAD models, connector specifications, wiring diagrams) are shared with multiple subcontractors—especially Chinese suppliers—there is high risk of design copying and white-label clones appearing on Alibaba within 6 months. The outdoor LED furniture market is competitive and fast-moving, with low barriers to entry for copycat products.

Mitigation — File design patents (EU and international) for the modular connector mechanism and integrated LED channel design before first production. Use NDAs with all partners and limit CAD file distribution (provide only 2D drawings or step files without full assembly context). Consider manufacturing connectors in-house or via a trusted Portuguese metal shop under strict NDA. Employ distinctive branding elements (logo-embossed connectors, unique fabric patterns) that are difficult to replicate. Watermark all technical drawings shared with suppliers.

Marine-grade outdoor fabrics (Sunbrella, Recasens, or equivalent) are typically stocked in limited colorways; custom colors or patterns require 6–8 week mill runs from Italian or Spanish suppliers. High-density outdoor polyurethane foam (open-cell, quick-dry) is a specialty product with 3–4 week lead times. Delays in fabric or foam delivery block final cushion assembly, which is the last step before packaging. Hospitality clients often require specific color matching (e.g. brand identity), creating single-source dependency.

Mitigation — Select fabrics from in-stock Sunbrella or equivalent collections for the first 100 units to avoid custom mill runs. Pre-purchase 10% excess fabric and foam to buffer for defects or rework. Identify two foam suppliers (one PT, one ES/IT) and pre-qualify both for density, UV resistance, and quick-dry performance. For custom colors, initiate fabric orders in parallel with frame prototyping (week 1) rather than waiting for design freeze. Consider modular cushion covers with zippers, allowing fabric replacement without discarding the foam core.
